Position:HOMECustomized cleaning machine

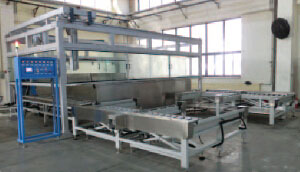

TNS800-7M-FAC
The characteristics of equipment
TNS800-7M-FAC
customized
Apply to cylinder
Process:
loading--- SUI clean---
SUI clean---SUI rinse---SUI rinse--- SUI rinse--Hot air dry
Ho air dry---unload
Product video
TNS-800-FAC
Parameter table
 External dimensions:6000mm(L)×7790mm(W) ×3110mm(H)
  1.  Feeding height:720mm
  2.  Electrical worktop height: 1600mm
  3.  Maximum load:150Kg
  4.  Power:< 260KW
  5.  Voltage/Hz:380V AC/50
  6.  Filling valve:R 1
  7.  Drain valve:R  1-1/2
  8.  Over flow weir valve: Φ12mm/0.3~0.7mpa
  9.  Weight:9000 kg
